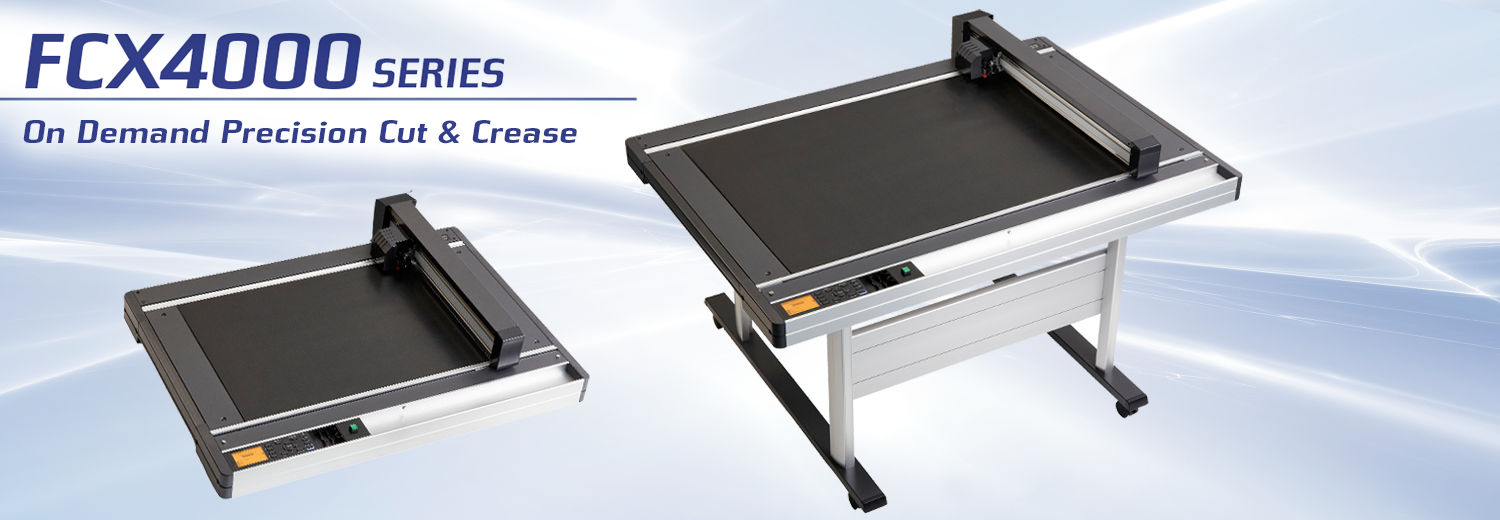

Graphtec FCX4000 Series achieves high quality cutting with improving of the quality and accuracy by enhancing rigidity of the sliding mechanism and the driving system.  It is the best flatbed type cutting plotter that has a high usability and productivity equipped with new functions.

Graphtec FCX4000 is an affordable cutting solution for small to medium print on demand jobs - using electrostatic to hold media.  The 60ES model cleanly fits four A3 + sheets for high productivity.  Operation is intuitive with its new control panel, 3.7” LCD screen, and USB / Barcode functionality.  Max. Speed 29.5"/sec, Max. Force 600 gf.

FCX4000 Series are the ideal cutting plotter for high-precision and medium-heavy material crafting jobs and is suitable for cutting intricate designs on vinyl, photo-masking films, foam material, cardboard, oil board, and sandblast resist rubber.

 Suitable for PET, Polyamide, Cardboard, Microflute board or Industrial materials with precise adjustable cut pressure up to 600 gf.  Flatbed FCX4000 Series is the most economical solution for cutting thick, hard materials that cannot be fed through a roll-feed/friction-feed cutting plotter.

Interface: Ethernet, USB2.0 and Serial RS-232C | Intuitive 3.7” LCD Screen | Digital Servo Motor USB Flash Memory for Offline Operation | Win & Mac Compatible

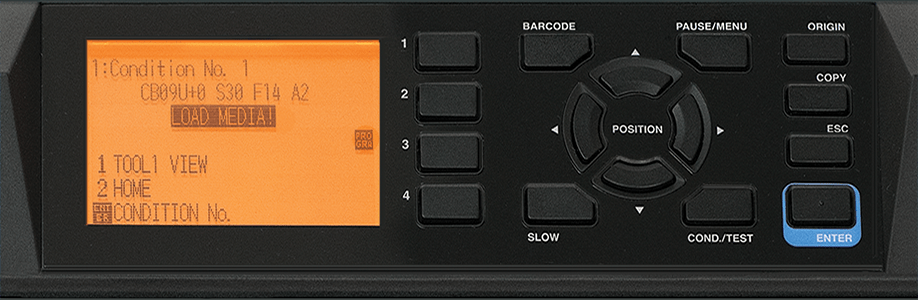

Settings can be easily set using the large
3.7-inch LCD (240 x 128 dots).

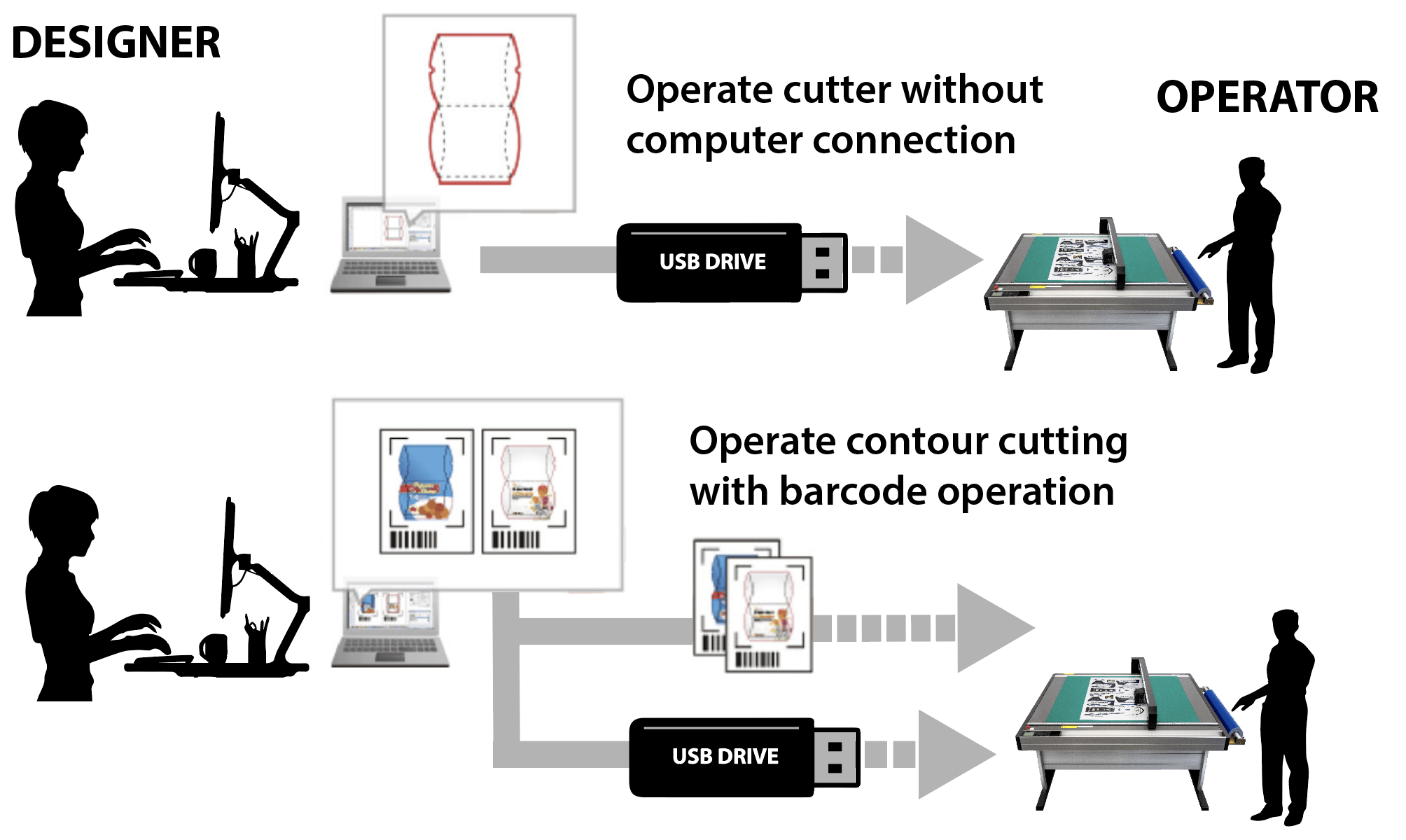

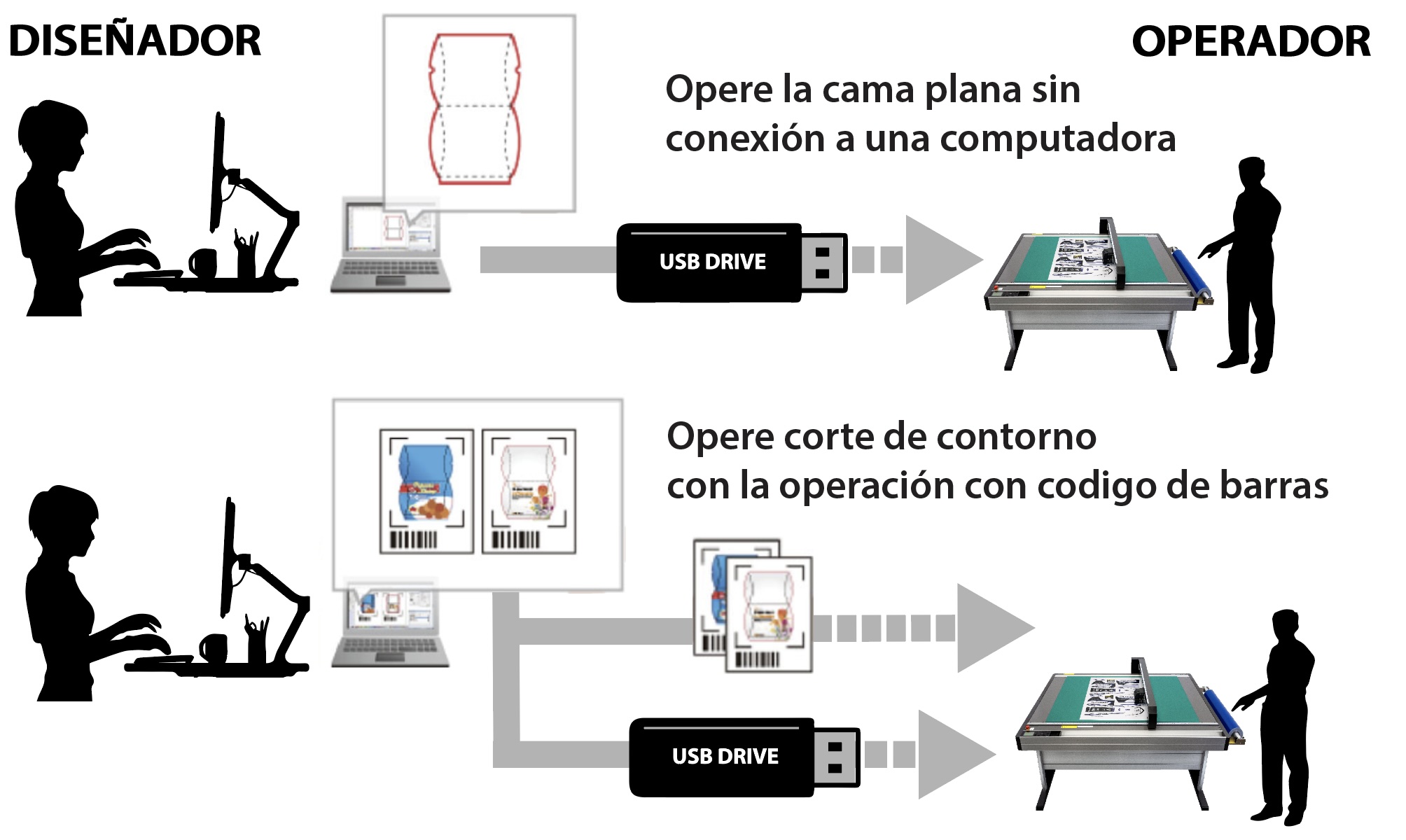

Cut and plot data is created with Cutting Master 5 or Graphtec Studio 2 software. The saved data may be transferred to a USB Thumb Drive and the cut plot data file can be selected from the USB on the FCX4000 using its menu operations. This simplified work-flow enables users to operate without being connected to the computer.

Data Management using Bar-code Function with USB flash memory

When performing contour cutting, also known as “Print & Cut”, the cutting data is automatically selected from the prepared USB flash memory. The FCX4000 scans the bar code printed on the media then automatically performs the contour cutting job. This emerging method helps to prevent operator error of using incorrect data - thus improving workflow efficiency.

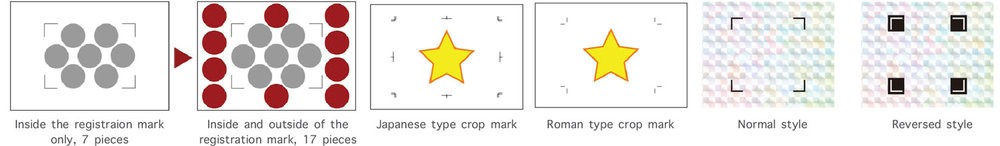

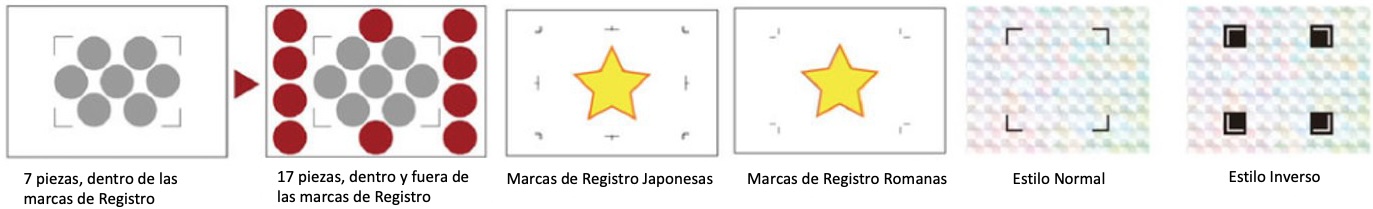

Expanded Contour Cutting Area

This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.

Supports Standard Crop Marks

Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.

Reversed Color Registration Marks

Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.

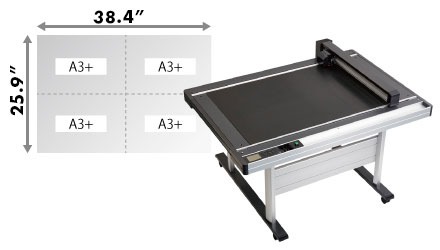

2 different table sizes are available.  The effective cutting area of the 50ES model is expanded for supporting 2 sheets of A3+ size, and the 60ES model supports 4 sheets of A3+ size, which is more suitable for post-processing of Print On Demand.

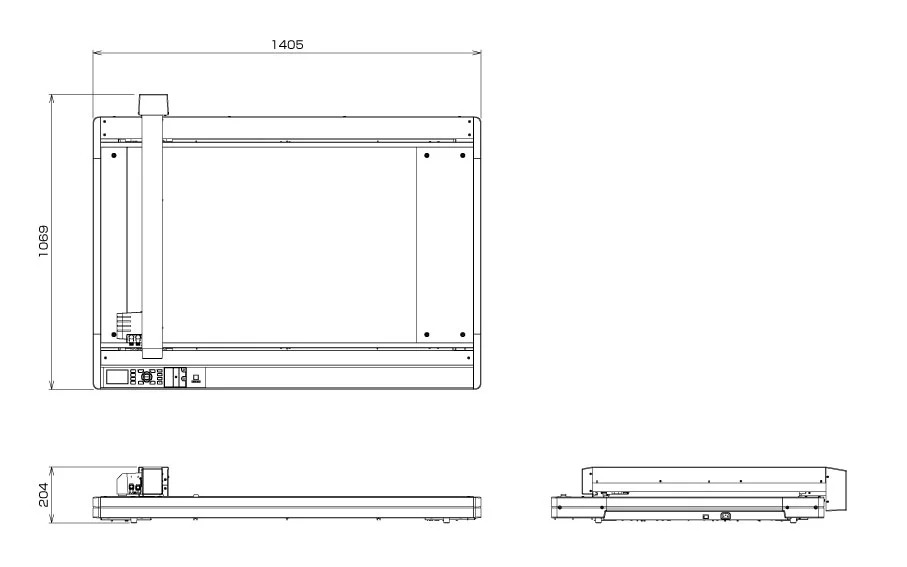

Table Size: 55.31" x 42.08" x 8.03" (w/o stand)
• Effective Cutting Area: 38.4" x 25.9"

*1. HP-GL™ is registered trademark of the Hewlett-Packard Corporation of the United States.

*2. When operated with Graphtec specified media and conditions.

*3. Tolerance: +/- 5 mm

*4. Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.

*5. For more information about Windows and Macintosh compatibility, please check the website or contact with your local representative of Graphtec

*6. Software available for download on the Graphtec website.
